Do it once, do it right.
Custom retractable fly screen doors for ranch sliders, sliding, bi-fold, hinged and French doors, made to measure and professionally installed.
From $1,725 installed · incl GST
★ 4.9 · 3,000+ homes · 25+ years
The classic two-panel ranch slider, plus wide sliders and multi-panel stackers.
View ranch sliders & sliding doors
Folding doors that open the whole wall, screened across the full span.
View bi-fold doors
Single front and back swinging doors with a neat retractable cassette.
View front & back doors
Pairs of doors - one screen across both, or a cassette each side.
View french doorsNZ owned and made to measure, then professionally installed, with service and aftercare arranged through Phantom Screens NZ.
Choose a screen layout around daily foot traffic, door handles and the threshold.
Keep your existing doors and add insect mesh across the opening you use.
Roll the screen away when it is not needed, with the cassette colour-matched to your joinery.
Pet-resistant mesh is tougher than standard insect mesh, but is not pet-proof or a containment barrier. Tell us how your pet uses the doorway.
See pet-friendly screensTighter midge mesh keeps sandflies and midges out of homes near the water and estuaries.
Real New Zealand installs, alongside product shots from the wider Phantom family.
Captured edge · stacking doors
Tauranga

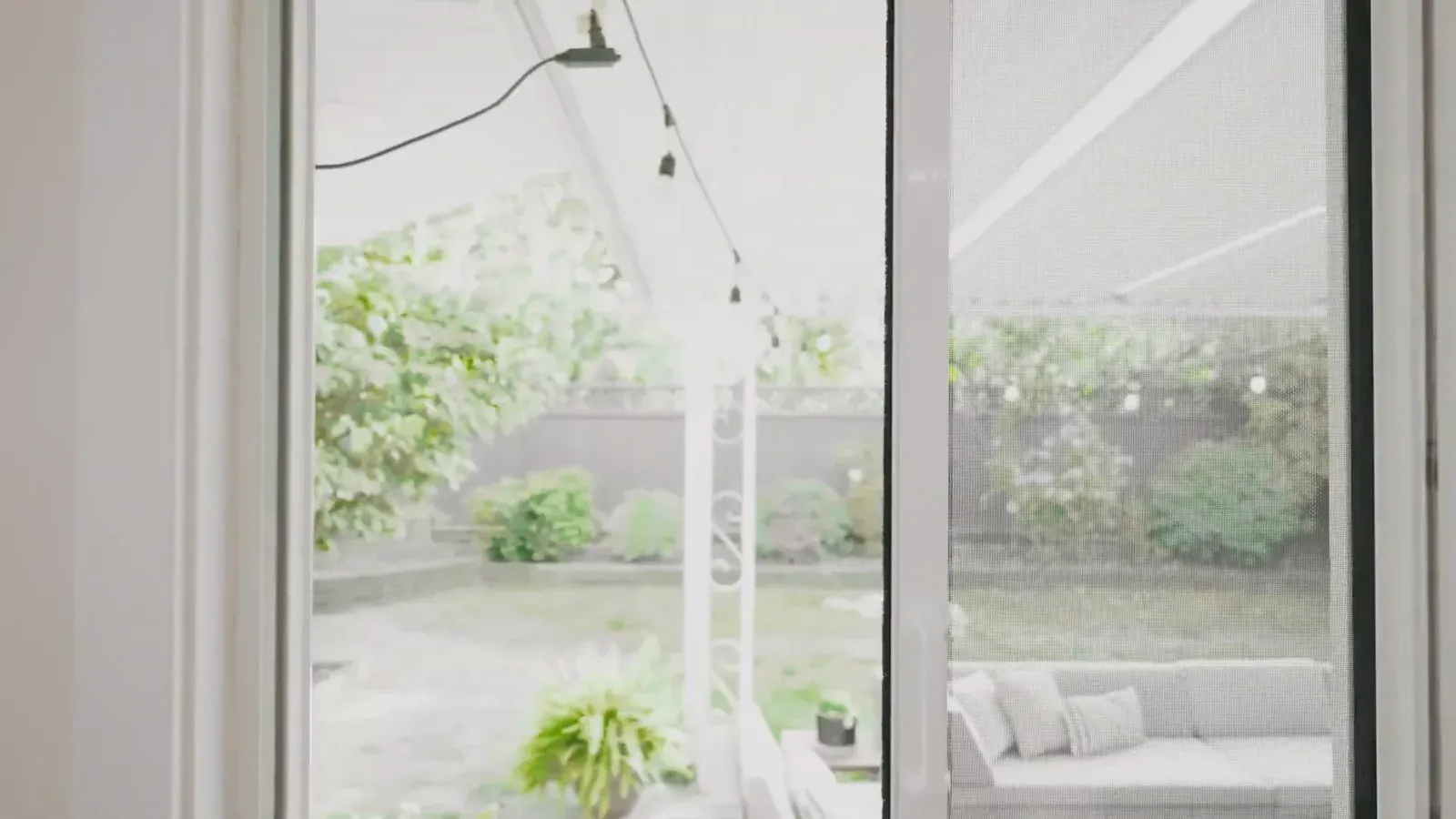

Captured edge on a single front door
Captured edge screen Double bifold doors, fully screened Retractable screen on French doors

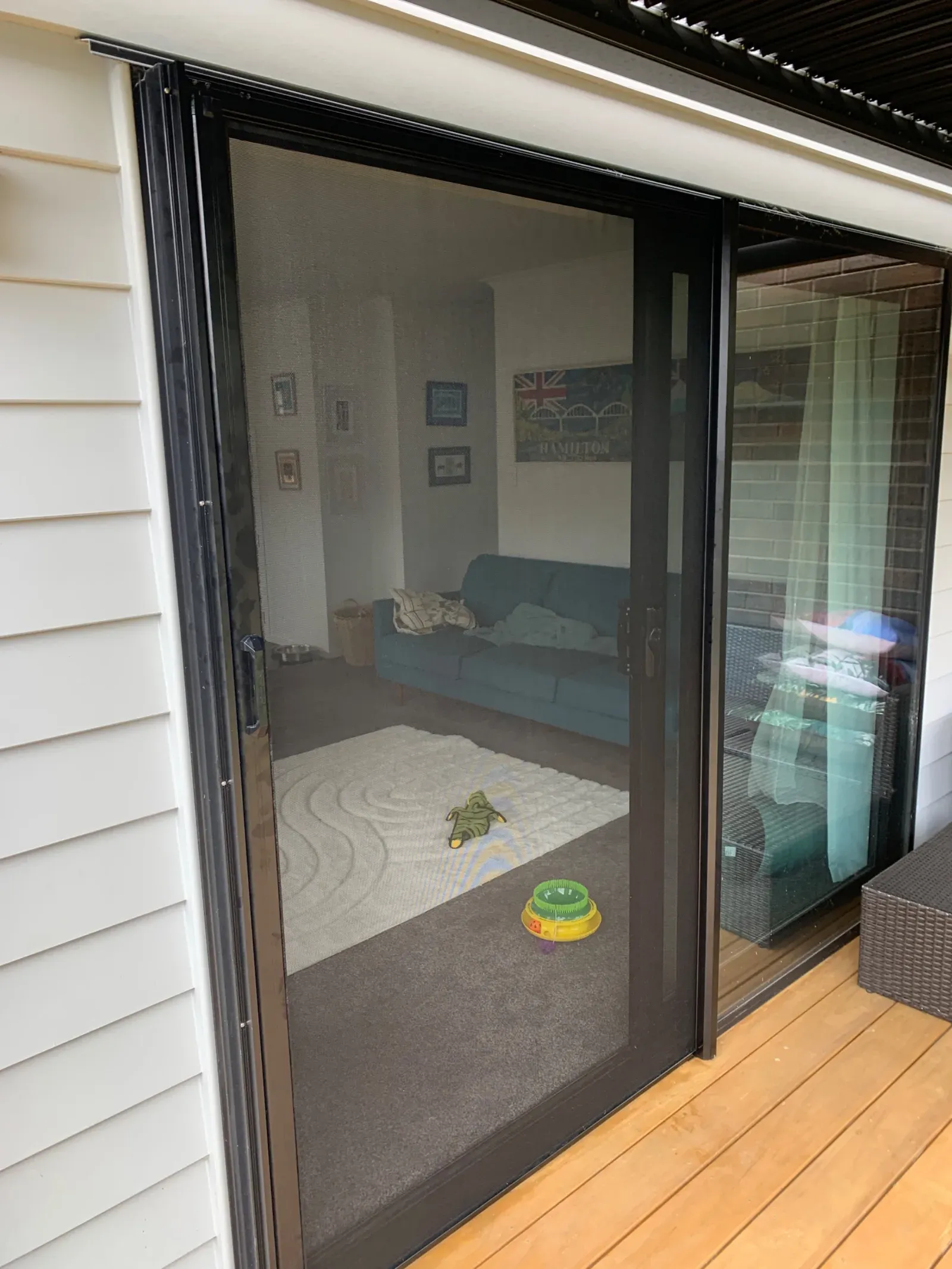

Pet-mesh screen on a patio slider
Brio 612 pleated, post-less corner
Measured and fitted for you
Brio 612 Recessed flush into the floor Captured edge slider with an elevated outlook

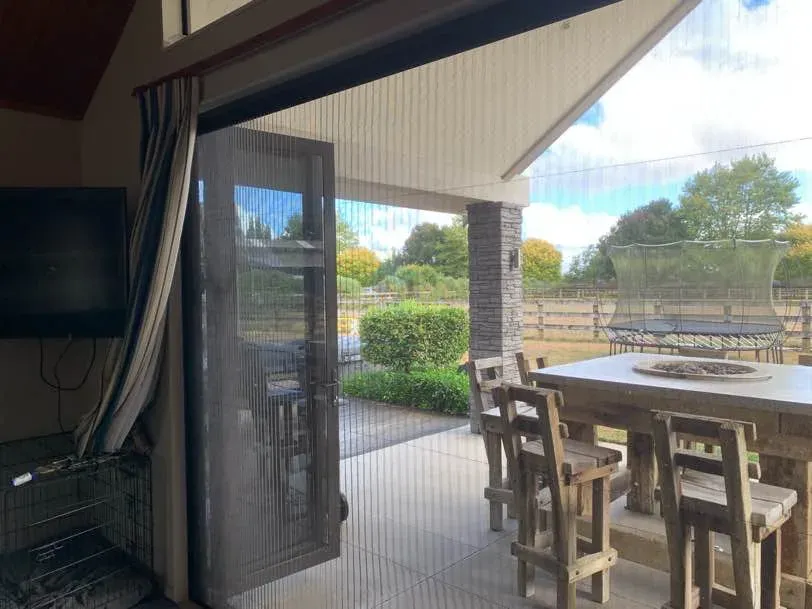

Captured edge Single doors - pets in, pests out Brio pleated screen across a wide opening, Matangi

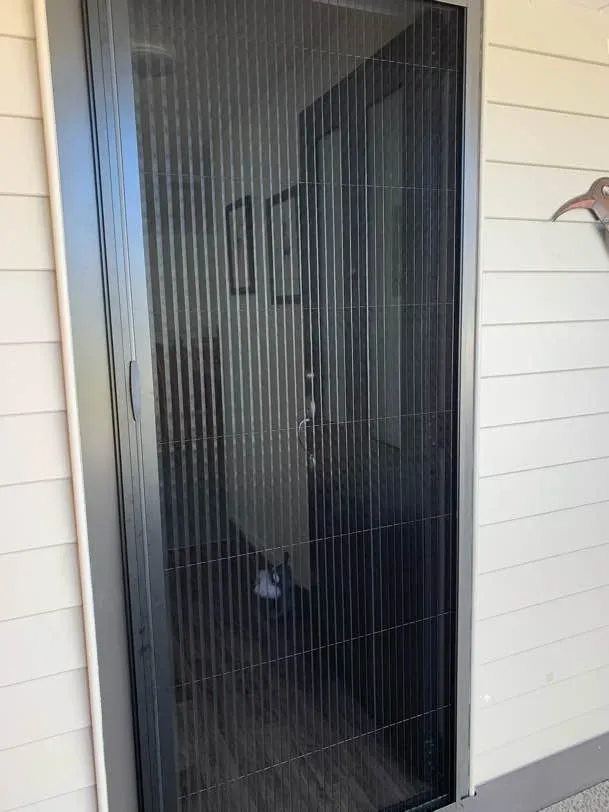

Brio pleated screen on the front door, Paeroa

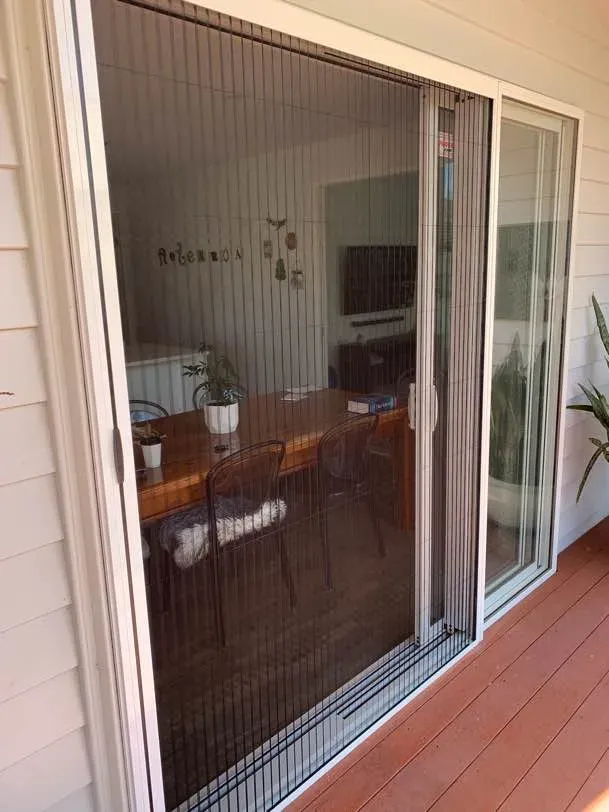

Brio screen across a stacker slider, Papamoa

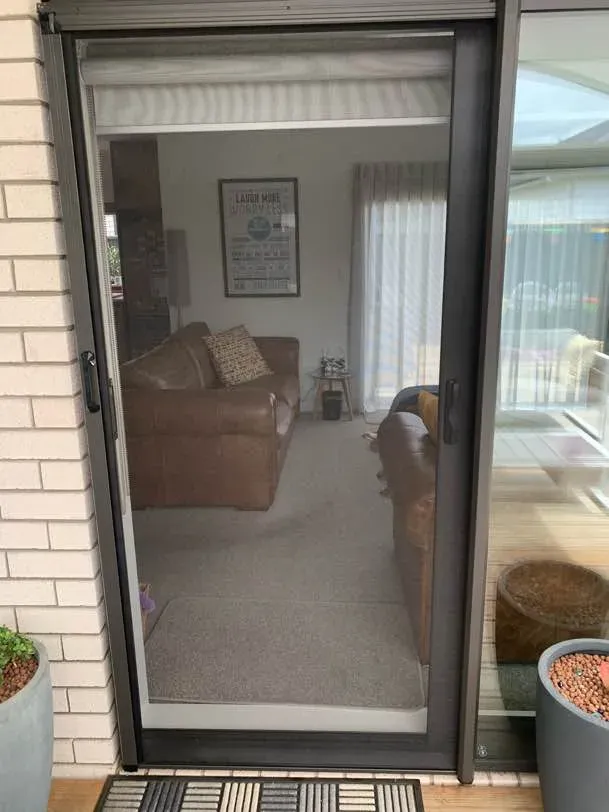

Retractable screen door on a slider, Hamilton

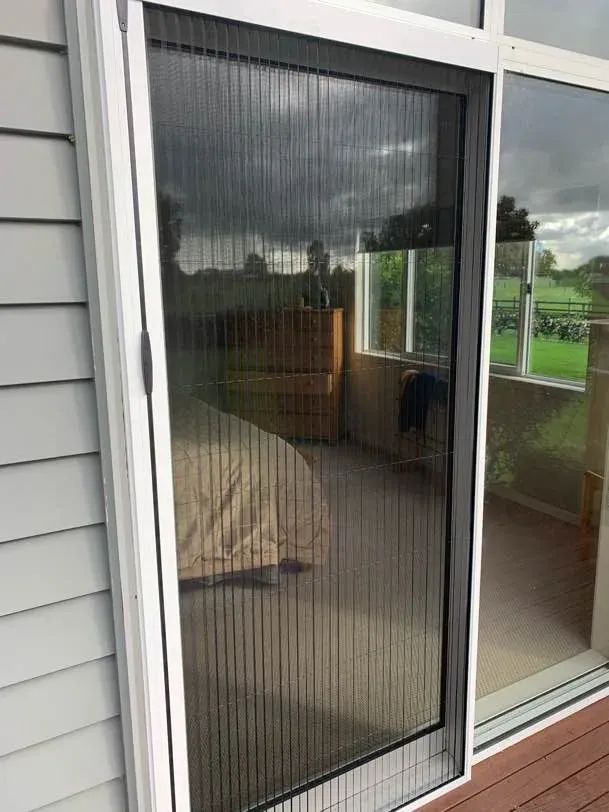

Brio screen on a bedroom slider, Matangi

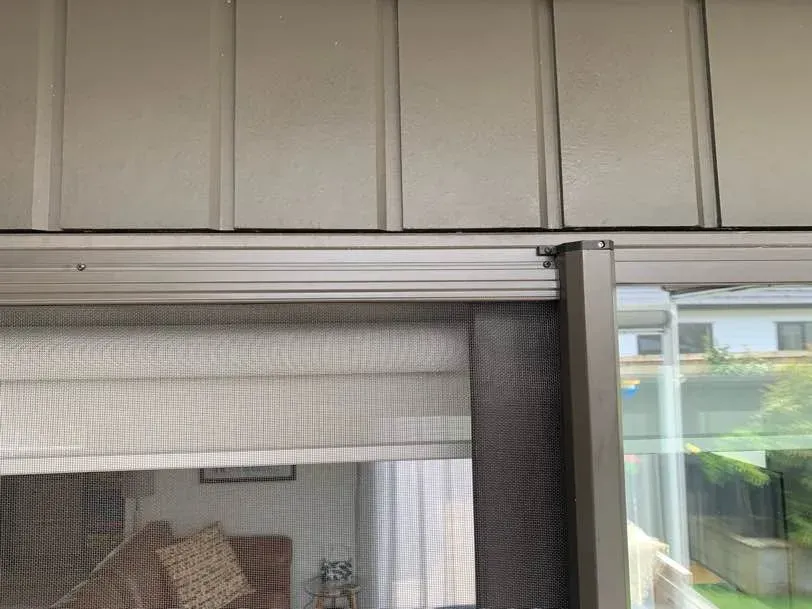

Retractable door screen head box, Hamilton

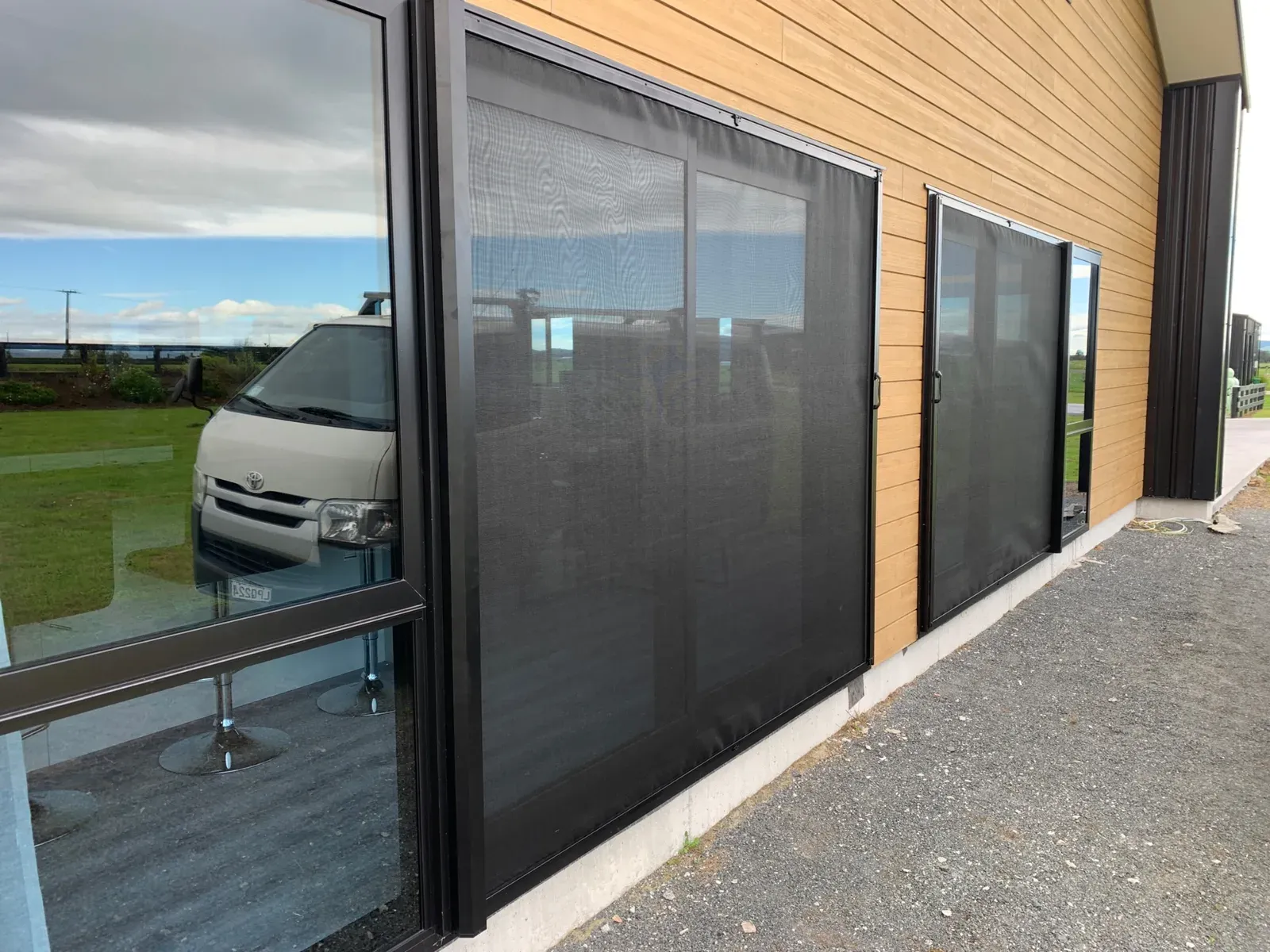

Captured edge screens on a timber-clad rural build, Morrinsville

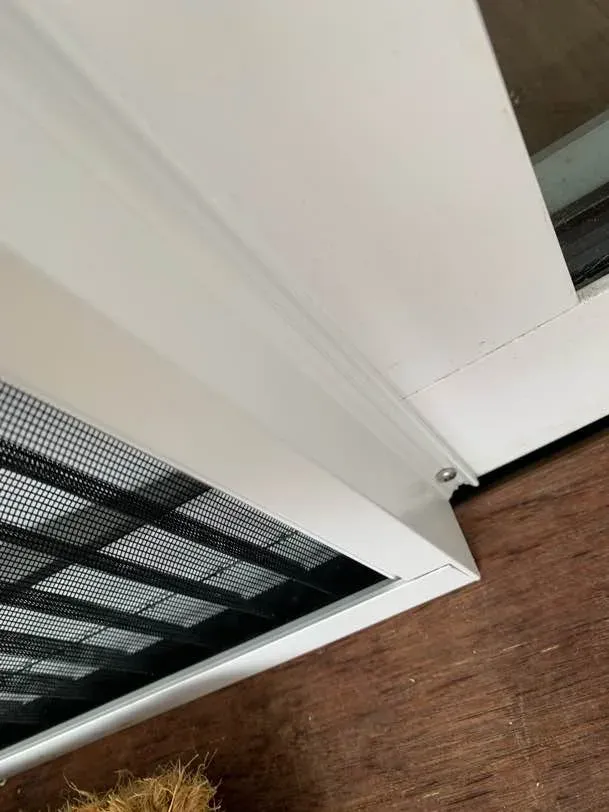

Low-profile threshold on a deck retrofit, Putāruru
Brio · sliding door
Coromandel
Brio · sliding door
Matamata
Brio · stacker doors
Morrinsville
Brio · corner stacker
Papamoa
Brio · sliding door
Tauranga
Brio · sliding door
Warkworth
Captured edge · front door
Hamilton
Captured edge · front door
Hamilton
Captured edge · ranch slider
Hoe-o-Tainui
Captured edge · sliding door
Matamata
Captured edge · sliding door
Morrinsville
Captured edge · sliding door
Morrinsville
Captured edge · ranch slider
Tauranga
Captured edge · sliding door
Ngāruawāhia
Captured edge · sliding door
Ngāruawāhia
Captured edge · front door
Taupō
Captured edge · sliding door
Tauranga
Captured edge · sliding door
Tauranga
Captured edge · patio slider
Tauranga
Captured edge · sliding door
Te Kauwhata
Captured edge · sliding door
Whangamatā
Captured edge · sliding door
Tauranga
Captured edge · sliding door
Hamilton
Captured edge · sliding doors
Morrinsville
Captured edge · stacker door
Tauranga
Captured edge · bedroom slider
Tauranga
Captured edge · sliding door
Tauranga
Captured edge · double doors
Tauranga
Captured edge · sliding door
Te Miro
Custom-made retractable and pleated door screens for sliders, bifolds, French doors, and more - retrofitted or built-in, protecting New Zealand homes since 1999.
Keep your existing doors and add a screen that retracts beside the frame when it is not needed. Start with the clear opening you walk through, rather than the full width of the glass. Handles, the threshold and available fixing space help determine the fit.
The mesh is zipped into the top and bottom tracks to resist blow-outs. It rolls back into a colour-matched cassette when you want the opening clear. The 45, 60 and 80 mm housings are sizes within this range, selected for your opening.
For specification, the 45 and 60 mm units use the MeshLock system; the 80 mm unit uses the Wall Screen system. Maximum single-screen sizes are:
| Housing | Width | Height |
|---|---|---|
| 45 mm | 1.22 m | 2.54 m |
| 60 mm | 2.0 m | 3.0 m |
| 80 mm, standard / midge / pet mesh | 4.5 m | Up to 3.0 m |
| 80 mm, E-Screen solar mesh | 3.5 m | Up to 3.0 m |
| 80 mm, above 3.0 m high | 3.0 m standard; 2.5 m midge, pet or E-Screen | Up to 3.6 m |
The 80 mm housing needs at least 1.75 m height. Two suitable units can meet in the middle for wider openings, up to about 9 m with standard mesh and suitable height. We confirm the complete configuration at the measure.
Pleated mesh folds to the side with no spring tension, so it stays where you leave it. Brio suits both everyday and wide openings, with recessed and post-less corner options. It uses its own pleated mesh, with no pet-mesh option.
The mesh options guide covers every weave in detail, including which products each mesh is available on.
Most projects are retrofitted to existing aluminium joinery, with neat surface mounting that complements the door frame. Where timber or recessed details are preferred, we coordinate with your joiner or builder to integrate the cassette or pleat pocket during the build.
Not sure which way to go? Send a photo and a rough opening size via the quote form and we will confirm the right product, span limits, and an indicative price.
Based in Tauranga, we arrange professional installation, service, and aftercare for every screen.
Looking for a self-measure, supply-only route instead? Explore the DIY fly-screen door range. For an opening measured, colour-matched, installed, and supported through Phantom Screens NZ, stay with Phantom Screens and request an indicative quote.
Full details: Captured edge door screens spec sheet (PDF) - View PDF Download PDF Brio 612 Pleated Screen spec sheet (PDF) - View PDF Download PDF
| Attribute | Captured edge door screens | Brio 612 Pleated Screen |
|---|---|---|
| How it opens | Mesh rolls into a cassette beside the opening | Pleated mesh folds to the side and stays where you leave it |
| Mesh retention | Mesh zipped into the top and bottom tracks | Dedicated pleated mesh with tensioning cords |
| Mesh choices | Standard, midge or pet; solar on compatible 80 mm units | Dedicated pleated mesh only; no pet mesh |
| Fit | Surface-mounted or recessed, with housing chosen for the opening | Surface-mounted or recessed; post-less corner options |
Colours
Screens are powder-coated from the Dulux range, Matt as standard, so the hardware disappears into your frames rather than standing out. The 20 we hold as standard cover about 85% of the homes we screen.
Custom colours
Not on the list? We match almost any colour you like, and anodised finishes are available as a custom option too - a small surcharge, confirmed at your quote.
Appliance White
Matt
Warm White Pearl
Matt
Arctic White
Matt
Off White
Matt
Titania
Matt
Almond
Matt
Gull Grey
Matt
Bronco
Matt
Silver Pearl
Matt
Silver Star
Satin
Sandstone Grey
Matt
New Denim Blue
Matt
Grey Friars
Matt
Lignite
Matt
Charcoal
Matt
Ironsand
Matt
Window Bronze
Matt
Karaka
Matt
Flaxpod
Matt
Black
Matt
Custom
Surcharge
Colours are indicative on screen. We confirm the exact colour against a physical Dulux sample at the measure-up.
Send photos and rough sizes for an indicative price - no visit needed. We only book a measure-up once you're happy with the solution and product.
Warranty by product
Phantom screens carry our limited lifetime warranty. Allegion's Brio 612 warranty provides five years of mechanical cover for interior installations and one year for exterior installations. MagicSeal magnetics carry their own product-specific warranty. Ziptrak backs genuine system components for five years through the retailer; Visiontex mesh, when specified, has a 10-year performance warranty subject to its conditions.
FAQ
Almost always, yes - single doors, French pairs, sliding and stacking doors, bi-folds, doors that swing in or out, and even servery openings. Send us a quick photo and a rough opening size and we can confirm the best screen type and an indicative price - usually without a site visit.
A few situations need a different approach, and we would rather flag them before you buy. Door hardware that sits proud, such as some lever handles or pull bars, can foul a retractable screen, so we check the clearances at the measure-up and suggest an alternative screen or a small hardware tweak where needed. Very wide openings beyond a single screen's span are handled by meeting two screens in the middle or stepping up to a door-style system. Send a photo with your enquiry and we will tell you honestly what will and won't work for your opening.
Yes - most of our installations are retrofitted to existing aluminium joinery with a tidy surface-mounted finish. On new builds we coordinate recess details with your joiner or builder so the cassette disappears into the frame.
Captured edge door screens keep the mesh zipped into the top and bottom tracks to resist blow-outs. Brio 612 Pleated Screen uses tensioning cords. We assess exposure and explain the operating guidance for your installation.
No. Standard insect mesh is high-visibility, so daylight and views stay largely unchanged, and the screen retracts fully into its cassette when you are not using it.
A seasonal vacuum of the mesh plus a damp-cloth wipe of the tracks or housings keeps the system running smoothly. Mesh cartridges are replaceable and parts are serviceable long-term. The full routine is in our care guide.
Every screen is made to measure, so the price depends on the opening size, screen type, and mesh. Send photos and rough sizes through the quote form and we will come back with an indicative price - we only book a measure-up once you're happy with the solution and product.
Most of the price difference is in the frame, the finish, and the internal componentry, and it shows over time. Our retractable screens are built on solid aluminium extrusions with a durable powder-coated finish, so the housing and tracks stand up to coastal conditions and daily use rather than flexing or fading. A lot of the difference is inside the screen: on a quality screen the cords run over a brass wheel rather than through a drilled hole, and the parts are serviceable - door screens we fitted on Beach Road at Mount Maunganui were still going after 17 years, and when they finally stopped retracting the fix was a new spring, not a new screen. The easiest check is the feel: a cheaper screen feels flimsy or clunky to operate, often rattles, and uses a lot of plastic parts. Phantom-made screens carry our limited lifetime warranty, and the mesh cartridges and parts are replaceable, so a screen is serviced rather than thrown away. A cheaper kit screen is usually a thinner extrusion with fixed mesh and a short warranty - less up front, but more often replaced.
We arrange professional installation across the upper North Island, from Taupo north - Northland, Auckland, Waikato, and the Bay of Plenty. We take on larger or architectural projects nationwide by arrangement. See all the areas we install in.
Captured edge door screens cover everyday doorways and wide openings. The 45 mm housing suits spans to about 1.2 m and the 60 mm to 2.0 m. An 80 mm unit reaches 4.5 m with standard, midge or pet mesh, or 3.5 m with E-Screen, at heights up to 3.0 m. Above that height, widths reduce. Two suitable screens can meet across a wider opening. Send rough sizes and we will confirm the combination for your quote.
Every screen is custom-made to measure, so the lead time depends on the product and the time of year - we confirm a firm timeframe when you accept your quote. The install itself is usually completed in a single visit.
Phantom Screens NZ is New Zealand owned and run, and part of the wider Phantom Screens family. Phantom in Canada leads much of the group's research and development, and a few of our door and outdoor ranges are made to measure by Phantom in Australia, where our New Zealand volumes are too low to make them here. Most of our screens are made to measure in our own Tauranga workshop.
